Development Site Contour Mapping

Save time and money using drone-based contour mapping

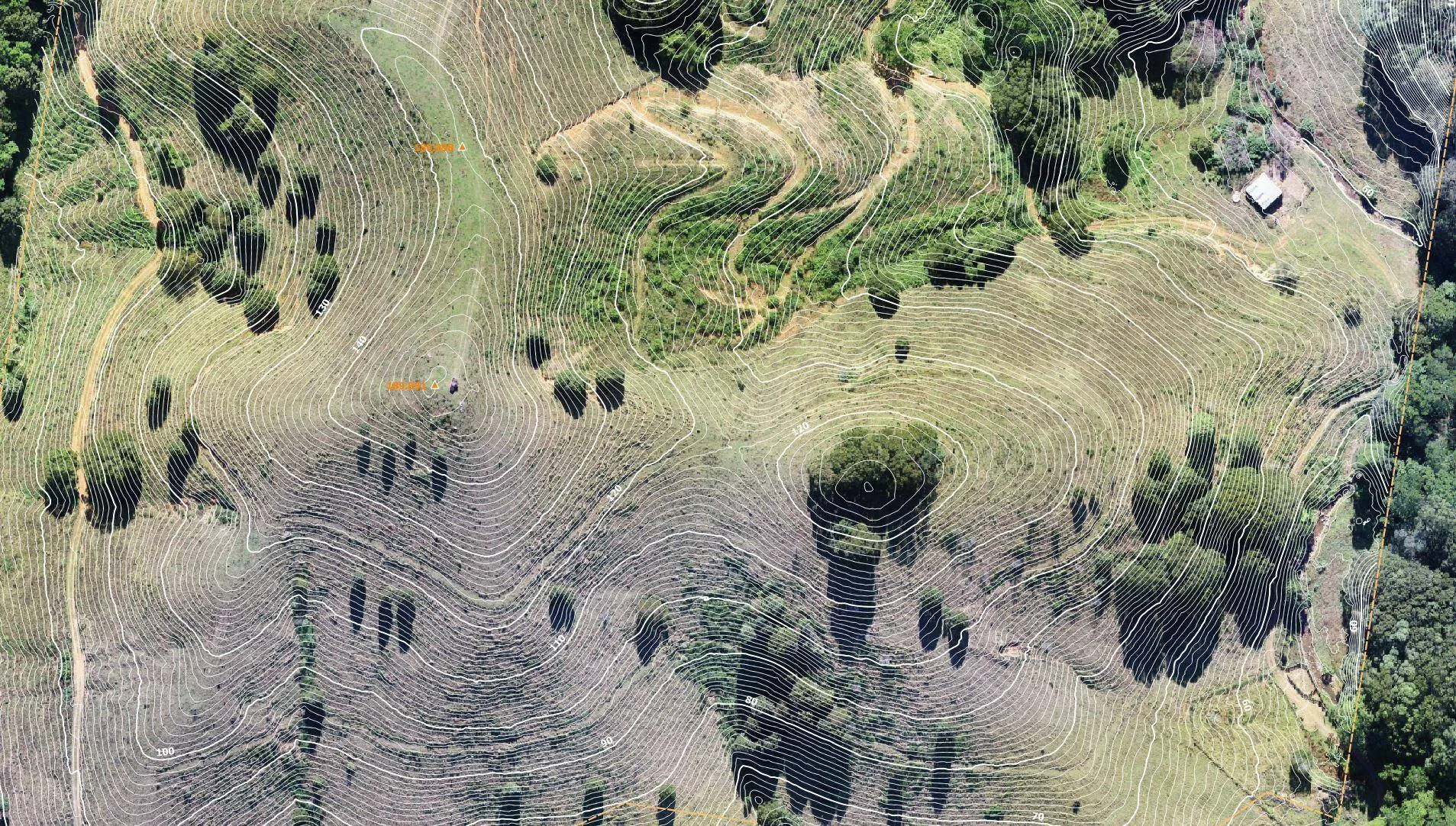

aerial survey mapping with elevation contours and datum heights
Precision aerial survey mapping using drones is fast, detailed, accurate and cost-effective

Queensland Drones specialises in fast, precise contour mapping and aerial survey mapping of large development sites using drones. Our enterprise-grade drones offer a much faster, safer and more cost-effective path to construction and development site contour mapping.

Our PPK precision mapping flights are undertaken at 20-24 megapixel image resolution with a typical ground resolution (GSD) of 2-3 cm per pixel, which is close enough to pick out a marker peg, inspection hatch or drain cover on the ground. Combine this with our PPK precision multi-constellation GNSS ground positioning (GCP) system and we can deliver better than 2cm overall geographic precision for most aerial mapping projects. With traditionally surveyed ground control points (using a registered surveyor), we can often achieve 5-10mm real world accuracy.

We can also optionally deploy aerial Lidar sensors where required, to maximise the accuracy of ground elevation data where there is a lot of vegetation (e.g. long grass) or trees.

get a quote for survey mapping

Aerial Mapping Contours can be levelled to your own local datum or to any common datum and projection. We typically deliver our maps in GDA2020 MGA, but we can also deliver in GDA94, WGS84 or local and site-specific datums, with Ellipsoidal or Australian Height Datum (AHD) elevations.

Queensland Drones routinely works with registered surveyors to create very precise and accurate aerial LIDAR survey maps with planimetric feature mapping which can include roads, bridges, electrical infrastructure, fences, gates, buildings, tracks, dams, creeks and vegetation outlines, delivered in CAD-ready data formats to import directly into your project software.

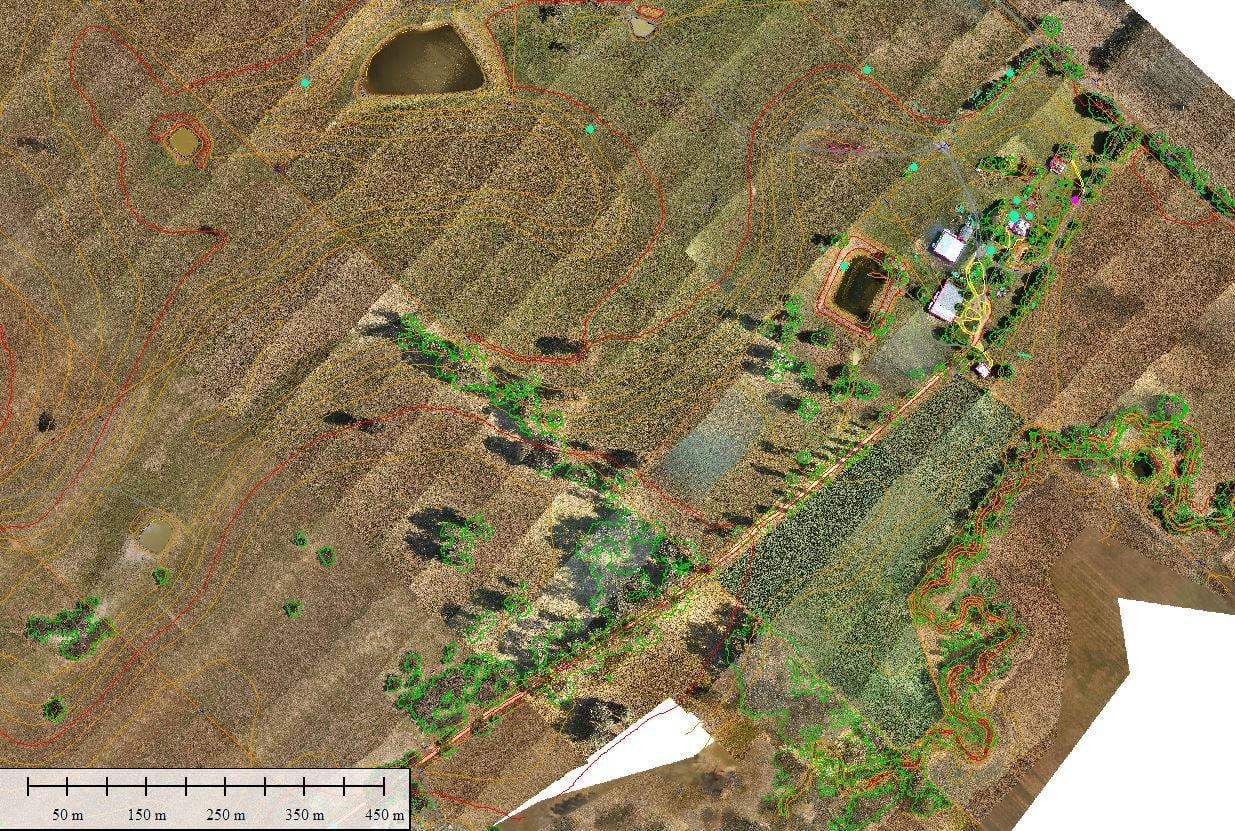

Planimetric feature mapping can be added to aerial contour and elevation mapping to enhance its project value
Elevation contours integrated with planimetric feature mapping overlaid on a high resolution orthomosaic image.

Our team can usually be on your site within 3 working days (faster for urgent requests) and have contour data back to you within a few days after that. Imagery is supplied in GeoTIFF or ECW format. Data is supplied in KML, SHP, DXF or DWG file formats for ease of use. We also create large format (A0) wall maps for our clients when requested. See examples on our Aerial Farm Infrastructure Mapping page.

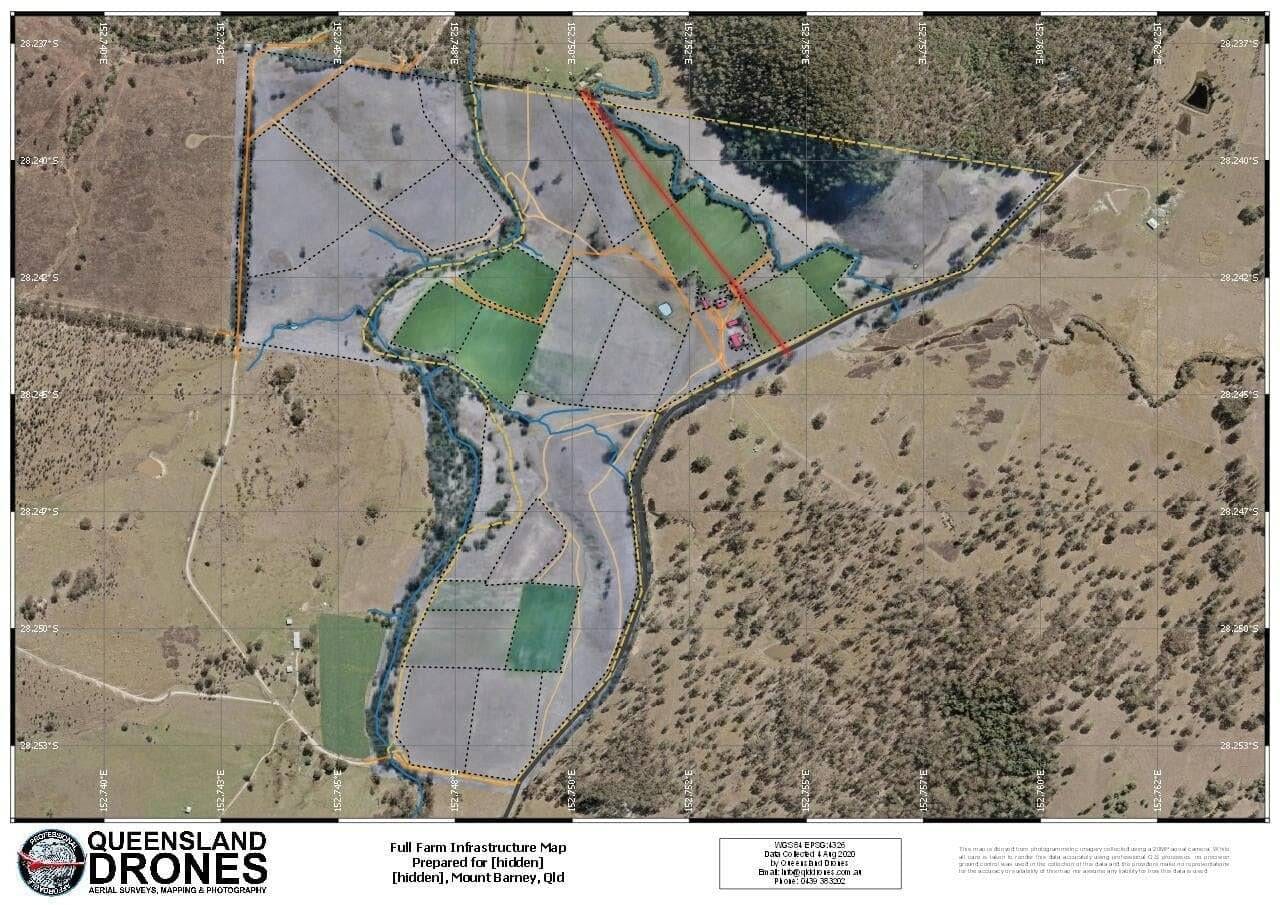

An A0 wall map of elevation contour mapping and farm infrastructure overlaid on an orthomosaic image
An A0 Wall Map is a great tool for planning discussions around elevation contour and planimetric feature mapping.

While we typically operate around Queensland and New South Wales, we are able to travel anywhere in Australia or internationally to capture aerial survey mapping data for our clients (COVID restrictions permitting). We have our own GIS specialist and our own GIS data processing platforms for fast, reliable map generation, so your data stays in Australia and is processed in-house.

Find out more about our development and construction site contour mapping services. Call us now on 1300 025 111 or complete the form below and we’ll get back to you ASAP. For more information about drone contour mapping accuracy, check out our blog.
