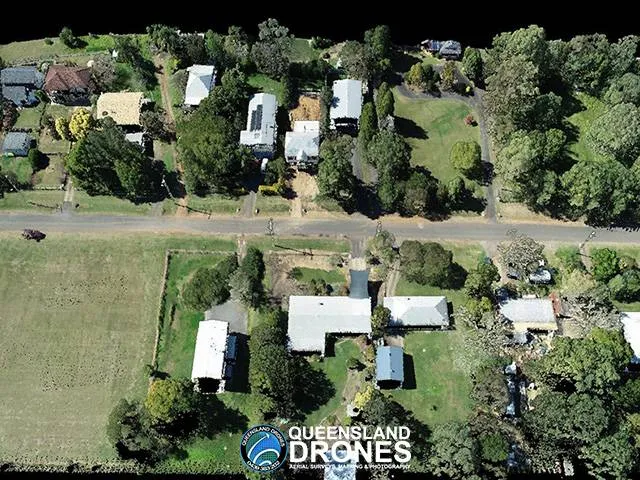

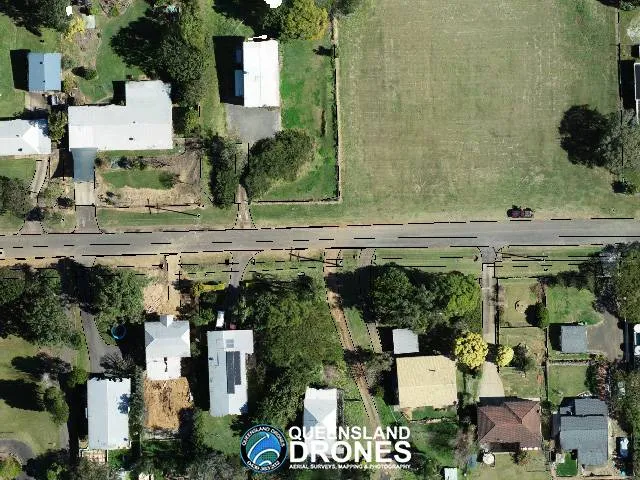

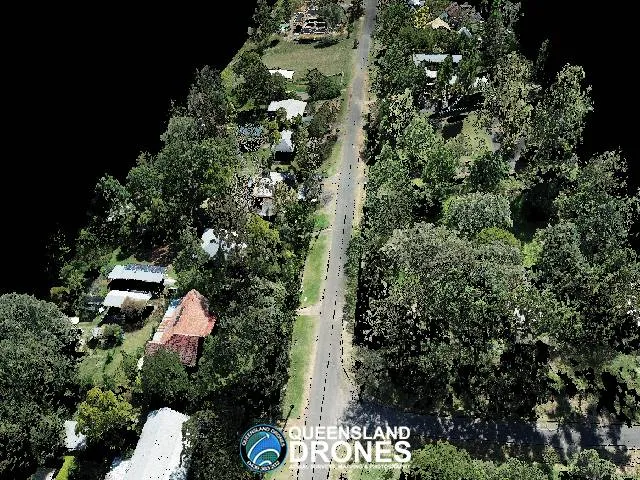

LIDAR Mapping of Urban Streetscapes
Queensland Drones captured a survey-grade 3D digital twin of more than 400 m of a residential street in a Queensland country town, delivering a 3D model and orthomosaic at better than 2 cm RMSE.
Before flying, we contacted and informed more than 100 residents in association with the local council, so the work was safe and fully compliant. Our surveyor partner measured the GNSS base point and every ground control point, and the received a full CAD-ready terrain and feature package.
| Project fact | Detail |
|---|---|
| Client | Local council in Queensland, through a surveyor partner |
| Location | Residential street in a Queensland country town |
| Streetscape length | More than 400 m |
| Community engagement | More than 100 residents contacted and informed before the flight |
| Capture method | Drone LiDAR with integrated RGB camera |
| Survey control | GNSS base point and all ground control points measured by the surveyor partner |
| Accuracy achieved | Less than 2 cm RMSE |
| Contour interval | 25 cm |
The Challenge
The council needed precise levels and features along a residential street and the only practical way to capture them quickly meant flying a drone over the street itself, while avoiding flying over peoples homes.
Streetscape design needs accurate kerbs, driveways, footpaths, drainage and road surface levels. A residential street makes that harder in three ways.
- People and property. Drone operations near houses, pedestrians and parked cars need CASA approval and careful planning. Residents also deserve to know what is happening above their homes and why.
- Clutter. Parked cars, overhanging trees, fences and driveways break up the ground surface. Ground survey crews have to work around all of it, often standing in the street.
- Precision. For design work along kerbs and driveways, a few centimetres matters. The data had to be survey-grade, not just a good-looking 3D model.
Methodology
Safety and compliance were planned as carefully as the survey itself. The flying took around three hours, although most of the work happened before the drone left the ground due to the planning involved.
- Approvals and planning. We planned the operation under our CASA ReOC #6466, including the approval needed to operate near people in a populated area.
- Resident engagement. We contacted and informed more than 100 residents along and near the street before the flight, explaining what we were doing, when, and why.
- Survey control. Our surveyor partner measured the location of our GNSS base and all ground control points, tying the drone data to survey-grade positions.
- Managing the site on the day. Spotters at each end, flight timing to avoid school and peak traffic, holding when pedestrians approached
- LiDAR and RGB capture. We flew the street with LiDAR and an integrated mapping camera together, capturing more than 400 m of streetscape including kerbs, driveways, footpaths and front boundaries.
- In-house processing. Our GIS team classified the point cloud to separate ground from cars, trees and buildings, then extracted kerbs, edges and other features as breaklines. No cloud processing platforms were used, and we never share client data without permission.
Deliverables
Our surveyor partner received six CAD- and GIS-ready products from the same validated surface.
| Deliverable | What it’s used for |
|---|---|
| 3D classified and colourised point cloud | A digital twin of the street to measure anything in 3D |
| High-resolution 2D orthomosaic | Plan-view base for design and asset identification |
| Features and breaklines | Kerbs, driveways, footpaths and road edges for the design surface |
| Breakline-constrained TIN mesh | Existing-surface model for civil design software |
| Ground-classified DEM | Bare-earth levels for drainage and grading, with cars and trees removed |
| 25 cm elevation contours | Grading, drainage and footpath design |
Validation
The 3D model and orthomosaic achieved less than 2 cm RMSE against the surveyor’s measured control. RMSE combines every measured difference between the model and the surveyed points into one figure, so it describes the whole dataset, not a single best point.
Hard urban surfaces — bitumen, concrete kerbs and driveways — give LiDAR a clean ground return and give the surveyor stable points to check against. That is why streetscape surveys can reach the top end of drone LiDAR accuracy. Our usual quoted tiers, which depend on terrain and ground cover:
| Ground control used | Typical horizontal accuracy | Typical vertical accuracy |
|---|---|---|
| None | ~5 cm | ~10 cm |
| Sufficient ground control | ~3 cm | ~5 cm |
| Ground control plus checking by a registered surveyor | ~2 cm | ~3 cm |
Client Outcome
The client received a survey-grade digital twin of the street, captured safely with residents informed in advance, and used it to redesign kerb, footpaths and drainage.
- No surprises for residents: more than 100 residents knew what was happening and why before the drone flew. There were no complaints from residents.
- Less time in the street: survey crews didn’t need to work along the road and around parked cars to collect levels.
- Complete coverage: the whole streetscape was captured, so designers can check any kerb, driveway or footpath without another site visit.
- Surveyor-backed accuracy: better than 2 cm RMSE, tied to the surveyor partner’s control.
Frequently Asked Questions
Can a commercial drone legally fly over a residential street in Australia?
Yes, but only with the right approval. CASA requires certified operators (ReOC holders) to get approval to fly over or near people, and once that approval is granted a general exemption allows them to operate in a populated area under its conditions.
Do residents need to be told before a drone survey of their street?
Whatever the approval conditions require, telling residents in advance is good practice and makes the job safer and smoother. On this project we contacted and informed more than 100 residents before flying.
How accurate is drone LiDAR for streetscape and kerb surveys?
On this project, drone LiDAR tied to surveyed control delivered better than 2 cm RMSE. Hard surfaces like bitumen and concrete kerbs suit LiDAR well because they give a clean, well-defined ground return. Recent advances in our drone and LIDAR systems mean even greater accuracy can now be achieved where required.
Can LiDAR map the ground under parked cars and street trees?
LiDAR records the ground through gaps in tree canopy and the processing separates cars, trees and buildings from the ground surface. Where a car completely covers a patch of road, the surface is extrapolated from the surrounding ground points; for critical spots, flights can be timed for when the street is clearer.
What is a digital twin of a street?
A digital twin is an accurate 3D copy of the street — here, a colourised LiDAR point cloud tied to survey control — that surveyors and engineers can measure, cut sections through and design against without returning to site.
Do you need a surveyor for a drone streetscape survey?
For design-grade work, yes. Our surveyor partner measured the GNSS base and all ground control points, which is what made the <2 cm result possible and provable.
