3D Model of Large Open Pit Mine

Queensland Drones was commissioned on behalf of a Hollywood movie production company to capture a high-resolution 3D model of one of the largest open pit gold mines in Australia, to be turned into a CGI set for a forthcoming feature film. More on that when it hits the big screen … until then our lips are sealed.

This model was captured using a Delair UX-11 fixed wing UAV with a 24MP mapping camera for the upper section, and a DJI Phantom 4 Pro with 20MP camera for the detail inside the pit. PPK correction was used to ensure the two sets of imagery could be tightly merged into a detailed 3D model.

Outputs included a 3D OBJ model, DEM, high res orthomosaic and detailed elevation contours.

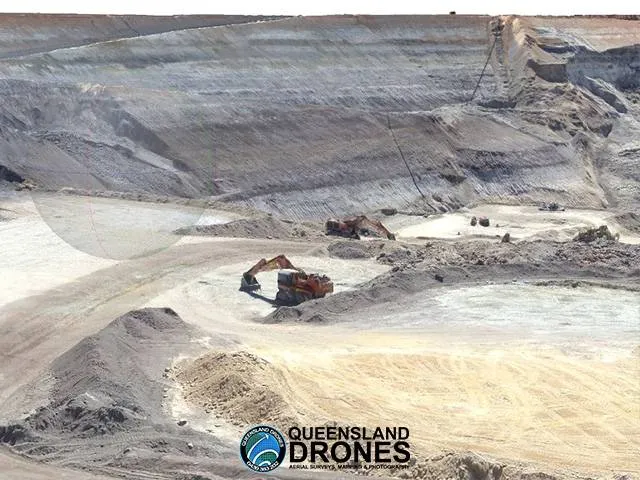

gold mine 01 1

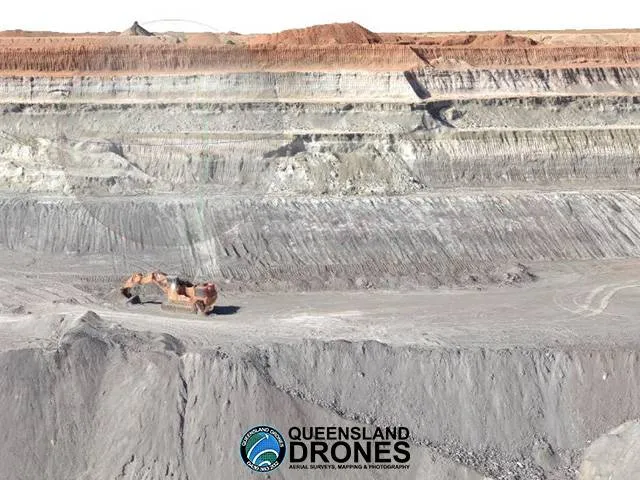

gold mine 04 1

To see more examples of our LIDAR mapping projects, visit our Project Gallery. To enquire about 3D mapping and virtual modelling for your project, email Tony at [email protected] or give us a call on 1300 025 111.
